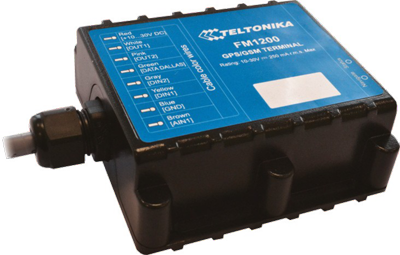

FM1200 - IP67 and NiMH battery

Waterproof GPS/GSM vehicle tracker with Nickel Metal Hydride back-up battery

Waterproof housing (IP67).Large Flash memory (16MB!) to store records up to 120 days in case of lost connection or in roaming Configurable device behavior to customize the data aquire&sending for different application and GSM costs saving.

FM1110 – internal GPS antenna

Small tracker with internal GPS/GSM antennas

FM1110  is  light  real-time  tracking  terminal  with  GPS/GLONASS  and  GSM connectivity, which is  able to collect device coordinates and other useful data and transfer  them  via  GSM  network  to  server .  This  device  is  perfectly  suitable  for applications  where  location  acquirement  of  remote  objects  is  needed:  fleet management,  car  rental  companies,  taxi  companies,  public  transport,  logistics companies,  personal  cars  and  so  on.

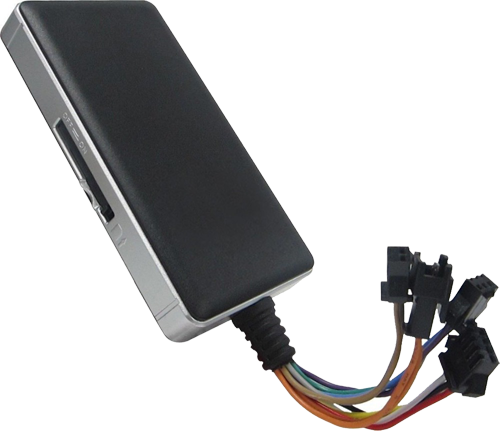

GPS Tracker gt06

GPS Vehicle Trackers

Vehicle Positioning and Tracking
Real-time polling and sending back GPS positioning information (which contains longitude, latitude, speed and direction) and the vehicle information to the service platform, displaying vehicle’s real-time condition of the vehicles.
Trace Playback
Related information such as the passed trace, speed and time and so on of the vehicles in the past period can be replayed.
Historical Data Backup
In the data base, vehicle’s driving time, trace and speed etc.can be conserved in one day or more. In order to keep the response speed of the data service, the system shall automatically transfer the current database into historical database at regular intervals.

• Hawkeye IP41with internal antenna

Features

    Basic Characteristics

            GPS/GPRS features:

• Hawkeye TM11Q quad band module (GSM 850 / 900 / 1800 / 1900 MHz);
• GPRS class 10;
• SMS (text, data).



            Hardware Features:

• Cortex®-M3 processor;
• 1 MB internal Flash memory;
• Built-in accelerometer.
• 170mAh Li-ion rechargeable 3,7V battery



            Interface Features:

• Power supply: 10 ÷ 30V;
• USB port;
• 3 digital inputs;
• 1 analog input;
• 2 open collector digital outputs;
• 1Wire® temperature sensor
• 1Wire® iButton
• LEDs indicating device status.



           Special Features

• Any element event triggers (external sensor, input, speed, temperature, etc.);
• Highly configurable data acquisition and sending;
• Multiple Geo-fence areas;
• Sleep mode;
• Deep sleep mode;
• Configurable scenarios available;
• Real-time process monitoring;
• Authorized number list for remote access;
• Firmware update over GPRS or USB port;
• Configuration update over GPRS, SMS or USB port;
• TCP/IP or UDP/IP protocol support;
• 8000 record storing.
